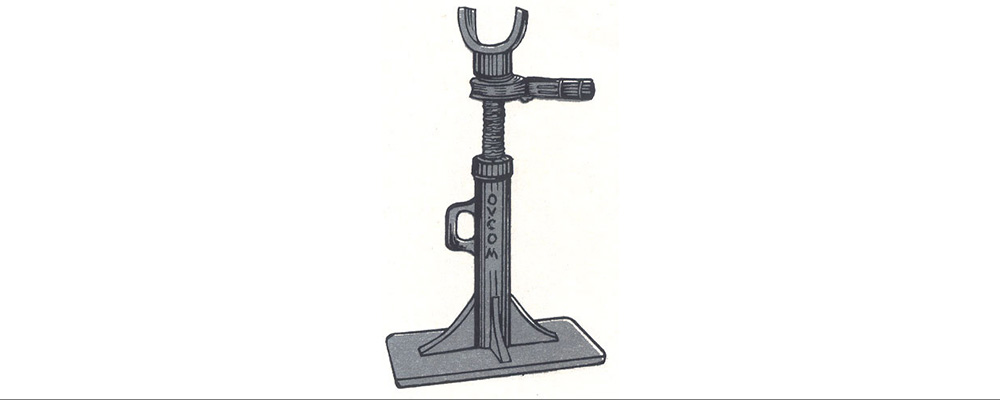

Cable Drum Jack
Technical Parameters
Model No. |
Capacity inTons |
Cable Dia. or Spindle |
Base size |
Closed Height |
Lift |
Dia. Of screw |
|---|---|---|---|---|---|---|
CDR 5 |
5 |
3" |
9" × 18" |
21" |
13" |
2" APPROX |
CDR 10 |
10 |
3 ½" |
9" × 20" |
29" |
18" |
2.375" |
CDR 15 |
15 |
3 ½" |
9" × 24" |
29" |
18" |
2.625" |
CDR 20 |
20 |
3 ½" |
9" × 24" |
30" |
18" |
3" |
CDR 25 |
25 |
4" |
10" × 30" |
32" |
20" |
3.125" |
1. Design & Specifications subject to alteration for the sake of improvement without notice.
