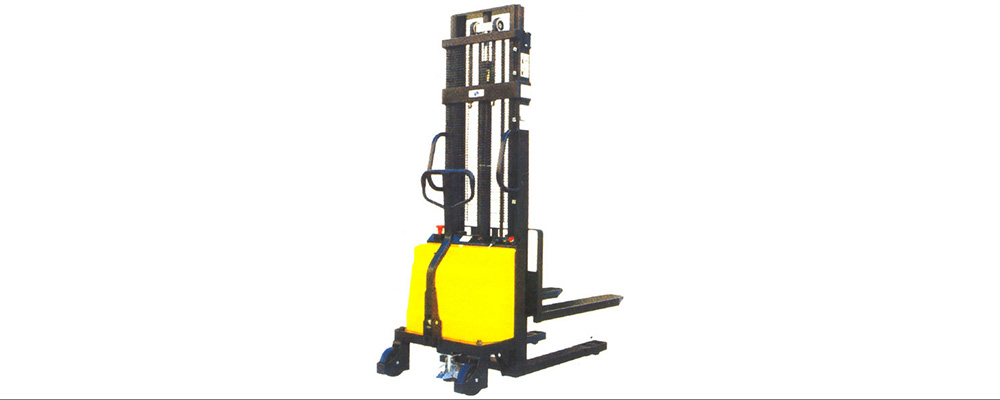

Semi Electric Stacker
Technical Parameters
MODEL |
HDD10B |
HDD15B |
HTD10B |
|
|---|---|---|---|---|
Capacity |
(Kg) |
1000 |
1500 |
1000 |
Total lift height |
H1(mm) |
1600/2500/300/3300 |
1600/2500/3000/3300 |
1600/2500/3000/3300/3500 |
Lowered Fork Height |
(mm) |
90 |
90 |
90 |
Fork length |
(mm) |
1070-1220 |
1070-1220 |
1070 |
Total height |
(mm) |
2090/1840/2090/2200 |
2090/1840/2090/2200 |
2145/1895/2145/2250/2395 |
Width over the forks |
(mm) |
580/695 |
580/695 |
200-800 |
String wheel |
(mm) |
Φ180 |
Φ180 |
Φ180 |
Fork wheel |
(mm) |
Φ80 |
Φ80 |
Φ98 |
Battery voltage |
(v) |
12 |
12 |
12 |
Handle height |
(mm) |
1180 |
1180 |
1180 |
Turn radius |
(mm) |
1340 |
1340 |
1340 |
Turck weight |
(kg) |
360/420/440/460 |
580/660/680/70 |
410/470/490/500/510 |
1. Compact design with strong steel construction.
2. A robust fork lift with strong support arms and mast for minimal bending, safe lifting and long life.
3. Simple and convenient lifting operating system.
4. Light and wasy manual steering system, fitted with a parking brake.
5. Smooth control of lifting and lowering for high precision.
6. Energy saving and regenerative, safe and efficient.
7. Special design are available according to customers requirements.
