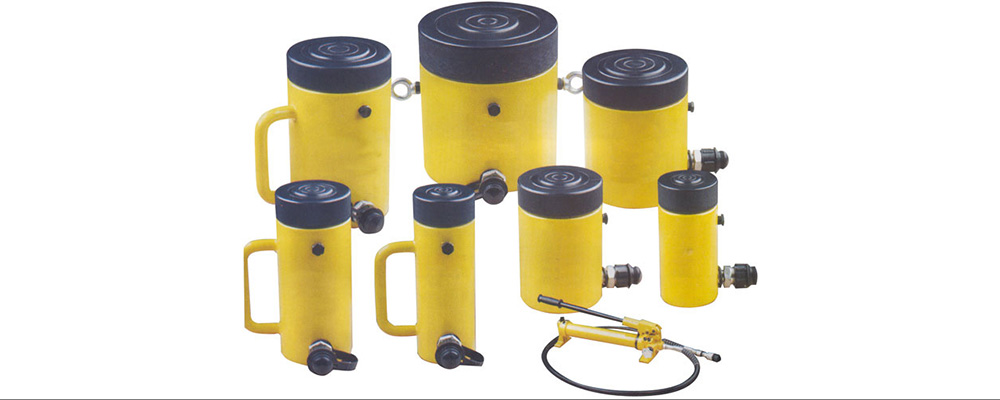

Hydraulic Cylinders Safety Locknut
Technical Parameters
Model |
Tonnage
|
Stroke
|
Matching
|
Closed Height
|
G.W.
|
|---|---|---|---|---|---|
HLL-1050 |
10 |
50 |
HP-700C |
160 |
5 |
HLL-10100 |
10 |
100 |
HP-700C |
210 |
6.5 |
HLL-10150 |
10 |
150 |
HP-700C |
260 |
8 |
HLL-2050 |
20 |
50 |
HP-700C |
160 |
7.5 |
HLL-20100 |
20 |
100 |
HP-700C |
210 |
9.5 |
HLL-20150 |
20 |
150 |
HP-700B |
260 |
13 |
HLL-3050 |
30 |
50 |
HP-700C |
160 |
9.7 |
HLL-30100 |
30 |
100 |
HP-700B |
210 |
12 |
HLL-30150 |
30 |
150 |
HP-700B |
260 |
17 |
HLL-5050 |
50 |
50 |
HP-700B |
160 |
15 |
HLL-50100 |
50 |
100 |
HP-700A |
210 |
20 |
HLL-50150 |
50 |
150 |
HP-700A |
260 |
25 |
HLL-10050 |
100 |
50 |
HP-700B |
187 |
31 |
HLL-100100 |
100 |
100 |
HP-700A |
237 |
39 |
HLL-100150 |
100 |
150 |
HP-700A |
287 |
47 |
HLL-15050 |
150 |
50 |
HP-700A |
209 |
54.5 |
HLL-150100 |
150 |
100 |
HJB-630A |
259 |
66 |
HLL-150150 |
150 |
150 |
HJB-630A |
309 |
79 |
1. Design & Specifications subject to alteration for the sake of improvement without notice.
2. All dimensions are in approx, mm, unless outherwise stated.
3. Copyright of this product or any part of it is reserved.
