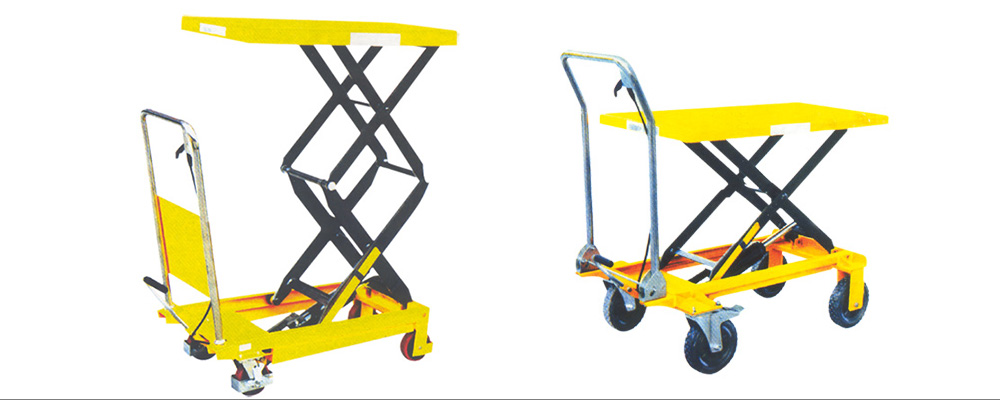

Scissor Lift Table
Technical Parameters
MODEL |
HP 150 |
HP150/A |
HP200 |
HP300/HP500 |
HP300A/HP500A |
HP800 |
HPS350 |
HPB1000 |
|
|---|---|---|---|---|---|---|---|---|---|
Capacity |
(Kg) |
150 |
150 |
200 |
300 / 500 |
300 / 500 |
800 |
350 |
1000 |
Max. lifted height |
H(mm) |
740 |
740 |
1000 |
900 |
900 |
1000 |
1300 |
1000 |
Min. height of the Table |
h(mm) |
225 |
225 |
340 |
280 |
340 |
420 |
350 |
380 |
Table Size |
(mm) |
700×450×35 |
740×450×35 |
1000×500×35 |
815×500×50 |
855×500×50 |
1000×510×55 |
910×500×52 |
1016×515×60 |
Handle height |
A(mm) |
935 |
935 |
1056 |
1000 |
970 |
996 |
970 |
960 |
Overall length |
B(mm) |
770 |
930 |
1120 |
935 |
925 |
1150 |
980 |
1170 |
Foot pedal cycles to max height |
<25 |
<25 |
<25 |
<32 / <45 |
<32 / <45 |
<70 |
<60 |
<55 |
|
Wheel diameter |
D(mm) |
100 |
100 |
200 |
127 |
127 |
150 |
127 |
150 |
Weight approx |
(Kg) |
44 |
44 |
600 |
75 / 85 |
75 / 85 |
115 |
110 |
115 |
Packing |
(mm) |
820×480×265 |
880×480×265 |
1140×620×460 |
960×530×420 |
950×530×390 |
1190×630×460 |
1010×530×390 |
1190×630×420 |
1. Design & Specifications subject to alteration for the sake of improvement without notice.
2. All dimensions are in approx, mm, unless outherwise stated.
3. Copyright of this product or any part of it is reserved.
