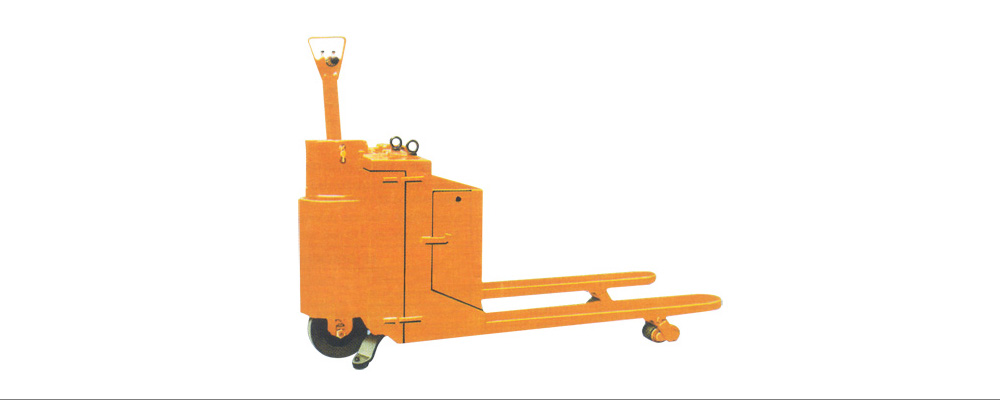

Power Pallet Truck
Special Features
» For low cost movement of palletised unit loads.
» Compact, rugged design to work in tight corners and tough conditions. Electric powered elevating mechanism with 114 mm (4½") fork lift.
» Easily maintained transmission, heavy duty electric control gear and drive motor.
» Takes over horizontal transport and leaves fork trucks and reach trucks free for stacking duties.
Technical Parameters
STANDARD DIMENSIONS |
PALLET TRUCK |
STILLAGE TRUCK |
|---|---|---|
PORTER 1115 / 1120 mm |
PORTER 2115 / 2150 mm |
|
A1 Ovrrall Length |
1710 |
1710 |
A2 Power unit Length |
710 |
710 |
A3 Fork / Platform Length |
1000 |
1000 |
B1 Wheel Base (Lowered) |
1265 |
1265 |
C1 Turning Radius |
1430 |
1430 |
D1 Under Clearance |
25 |
54 |
E1 Width of Power unit |
710 |
710 |
E2 Width Over Fork / Platform |
560 |
560 |
E3 Width of Fork |
165 |
-- |
E4 Width between Forks |
230 |
-- |
G1 Rear Pverhang |
165 |
165 |
G2 Front Overhang (Lowered) |
280 |
280 |
Fornt Overhang (Raised) |
318 |
318 |
H1 Height of Fork / Platform |
86 |
160 |
H2 Height of Lift |
115 |
115 |
Load Wheel Track |
405 |
405 |
Capacity (distributed evenly) |
1500 / 2000 kg |
1500 / 2000 kg |
Battery |
24 V, 162 AH |
24 V, 162 AH |
TRAVEL SPEEDS
Unladen : 5 kph
Laden : 4kph
GRADIENT
Maximum (Laden 1:10) - 10%
LIFT TIMES (PORTER 1115/2115)
Unladen : 6 sec. approx.
LIFT TIMES (PORTER 1120/2120)
Unladen : 6 sec. approx.
Laden : 8 sec. approx.
WHEEL & TYRES (POWER 1115/1120)
Drive Wheel : Single bonded cushion rubber / polyurethane 254 mm. dia 102mm. wide.
Load Wheel : Two sets of twin steel wheels in tandem. Size 83mm. dia 80mm. wide. Alternatively nylon load wheels available.
WHEEL & TYRES (POWER2115/2120)
Drive Wheel : Single bonded cushion rubber / polyurethane 254 mm. dia 102mm. wide.
Load Wheel : Two nos. polymer/nylon/steel. Size 83mm. dia 80mm. wide.
All dimentions and data given above may vary slightly due to manufacturing tolerance. Performance may also be affected by operating conditions. The manufacturer reserves the right to alter the specifications without prior notice.
