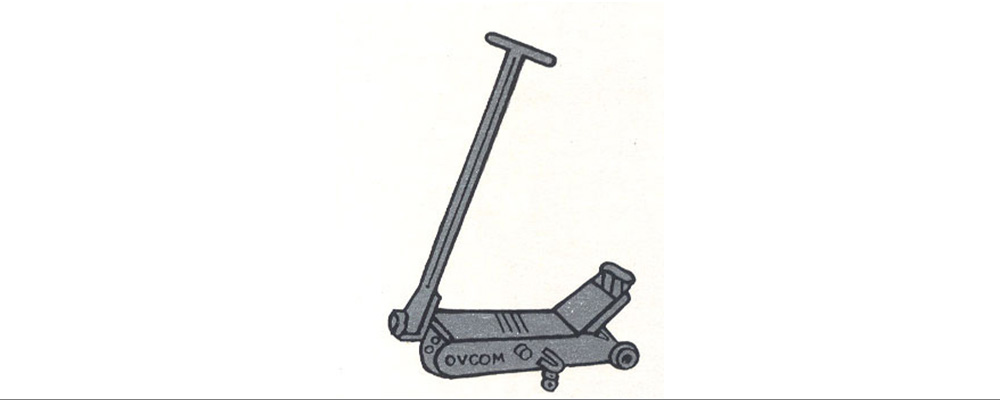

Hydraulic Trolley Jack
Technical Parameters
Capacity |
1.5 Ton. |
2-1/2 Tons |
5 Tons. |
10 Tons. |
15 Tons. |
20 Tons. |
|---|---|---|---|---|---|---|
Minimum Height (Saddle) |
130 mm. |
125 mm. |
150 mm. |
190 mm. |
190 mm. |
190 mm. |
Maximum Height (Saddle) |
400 mm. |
450 mm. |
900 mm. |
720 mm. |
720 mm. |
720 mm. |
Highest point of Chassis |
270 mm. |
155 mm. |
210 mm. |
285 mm. |
285 mm. |
285 mm. |
Width (Widest point) |
150 mm. |
430 mm. |
450 mm. |
480 mm. |
520 mm. |
560 mm. |
Length of Chassis |
660 mm. |
1300 mm. |
1485 mm. |
1630 mm. |
1630 mm. |
1630 mm. |
Length of Handle |
260 mm. |
1000 mm. |
1100 mm. |
1100 mm. |
1100 mm. |
1100 mm. |
Length with Handle |
760 mm. |
2000 mm. |
2400 mm. |
2700 mm. |
2900 mm. |
3000 mm. |
Approx. Weight |
30 Kg. |
100 Kg. |
142 Kg. |
210 Kg. |
255 Kg. |
325 Kg. |
